Water treatment
Water treatment is a technology for obtaining drinking or process (for any industrial need) water.
Water for cleaning is fresh surface or underground (salt content of 0.5 g/l) or brackish (0.5-25 g/l), sea (25-45 g/l) and in some cases purified wastewater or process water.
Water treatment types and its functionalities
To obtain drinking water, in accordance with most national standards and recommendations of the World Health Organization requires:

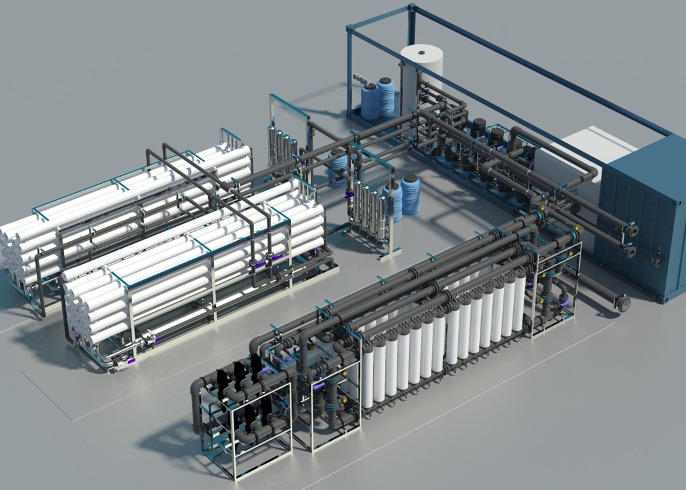

Pre-engineered containerized systems with equipment from the world's leading manufacturers are offered for treatment systems of each type of feed water. In order to obtain high-purity water (for high-pressure boilers) containerized electrodeionization (EDI) equipment can be supplied in addition, fully synchronized with UF/RO design.
| Number of containers | Fresh water (m³/h output) | Brackish water (m³/h) | Sea water (m³/h) |
|---|---|---|---|
| 1 | 100 | 60 - 80 | 40 -45 |
| 2 | 250 | 150 - 190 | 100 - 115 |
| 4 | 600 | 350 - 500 | 220 - 250 |
| 8 | 1400 | 800 - 1200 | 500 - 600 |
| Electricity consumption (1m³ product) | 0.9kW | 2.5kW | 2.8kW |
Benefits of Containerized Systems:
Reference types
Water treatment types and functionalities in details
Water treatment | Mongolia

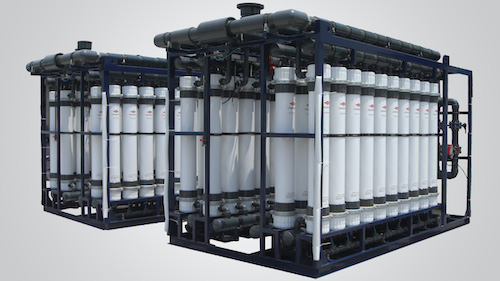

Ultrafiltration (UF)
Aim of removing suspended substances (SS), dissolved iron/manganese, color, bacteria and viruses (to purify fresh water)
- Polymer membrane - non-corrosive Polytethylsulfone (PES) material
- Compact design and minimum area for placement
Water treatment | Mongolia

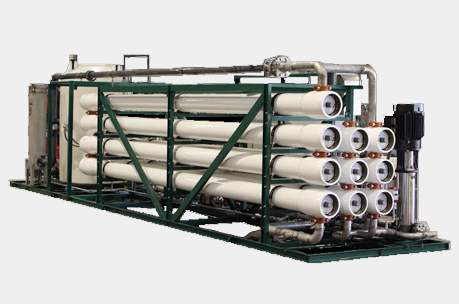

Reverse Osmosis (RO)
Pretreatment, in addition to UF-removed substances, excess salts (to purify brackish water)
- Membranes up to 600 m² ft. surfaces allowing to increase the membrane performance by 35%
- Square housings to accommodate up to 48 RO membranes in one UV / RO container
Water treatment | Mongolia
RO with UF
Pre-cleaning for removal, in addition to UF-removed substances, majority of salts (to purify sea water)
Questionnaire
Prepare for tomorrow, benefit today
When we receive a request in the form of a completed enclosed questionnaire, our experts will contact you and offer a solution that best meets your expectations and conditions. We are more than ready to help!
